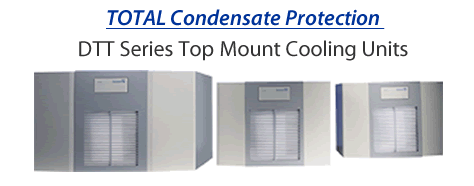

NO penetration of condensate into the enclosure
NO condensate in the air flow
NO condensate build up between the unit and enclosure
NO condensate-prone air routing ducts
Large Variety & Small Size
3 Sizes with 6 Performance Ranges:
• Size 1: DTT 6201 (2,500 - 4,000 Btu/h) / DTT 6101 (1,200 - 2,000 Btu/h)
• Size 2: DTT 6401 (5,500 - 7,000 Btu/h) / DTT 6301 (4,000 - 5,500 Btu/h)
• Size 3: DTT 6801 (12,000 - 14,000 Btu/h) / DTT 6601 (7,000 - 10,000 Btu/h)
Installed easily where there is no room for a side mount unit.
Easily Installed and Serviced
Quick installation frame with plug-and-socket connections,
central locking mechanism, easily removable hood provides
easy access to filter mat and controls.
Energy Efficient & Environmentally Friendly
Experience approx. 20% energy savings over standard top mount
units with use of innovative components, made largely of safe, recyclable plastic.
UL Certified
To download: move cursor over desired file, click on the right hand side of your mouse and "Save Target As..."
|
Model |
VAC |
Color |
Part No. |
Cooling |
Data Sheet |
Manual |
Cut Out |
Drawings | ||||
| DTT 6101 |
115 |
RAL 7035 |
132 1614 4055 | 1000-1500 BTU/h |  |
|
|
|
 |
 |
||
|
230 |
132 1614 1055 | |
|
|
|
|
|
|||||
| DTT 6201 | 115 | RAL 7035 Lt. Gy |
132 1624 4055 |
2000-3500 BTU/h |
|
|
|
|
|
|
||
| 230 | 132 1624 1055 | |
||||||||||
| 460 | 132 1624 9055 | |
||||||||||
| DTT 6301 | 115 | RAL 7035 Lt. Gy |
132 1634 4055 | 4000-5500 BTU/h | |
|
|
|
|
|
||
| 230 | 132 1634 1055 | |
||||||||||
| 460 | 132 1634 9055 | |
||||||||||
| DTT 6401 | 115 | RAL 7035 Lt. Gy |
132 1644 4055 | 6000-8500 BTU/h | |
|
|
|
|
|
||
| 230 | 132 1644 1055 | |
||||||||||
| 460 | 132 1643 2055 | |
||||||||||
| DTT 6601 | 460 | RAL 7035 Lt. Gy |
132 1663 2055 | 9000-12000 BTU/h | |
|
|
|
|
|
||
| DTT 6801 | 460 | RAL 7035 Lt. Gy |
132 1683 2055 | 12000-14000 BTU/h | |
|
|
|
|
|
||
